Ceratizit
1.0103013E9

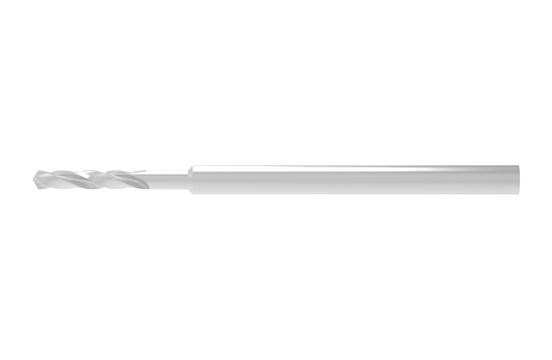

TWIST DRILL HSSE-PM
Specifications
| Diameter (Metric) | 1.25 |
|---|---|
| Overall Length (Inch) | 0.99 |
| Coolant Fed | Without IC |
| Overall Length (Metric) | 25.0 |
| Material | HSS-E-PM |
| Coating/Finish | Uncoated |
| Diameter (Inch) | 0.05 |
| Number Of Flutes | 2.0 |
| Unit Of Measure | Imperial |
| Height (Decimal) | 0.35 |
| Shank Length (Metric) | 14.6 |
| Width (Decimal) | 1.61 |
| Short Description | N-PM.1,30.R.DIN1899 |
| Long Description | TWIST DRILL HSSE-PM N-PM.1,30.R.DIN1899 |
| Cutting Direction | Right |
| Point Angle | 118 degrees |
| Connection Diameter (Decimal) | 0.06 |
| Connection Diameter (Metric) | 1.5 |
| Connection Diameter Tolerance | H8 |
| Connection Type | CYL |
| Diameter Tolerance (Decimal) | -0.01 |
| Diameter Tolerance (Metric) | -0.01 |
| Length (Decimal) | 2.2 |
| Protruding Length (Decimal) | 0.41 |
| Protruding Length (Metric) | 10.4 |
| Shank Length (Decimal) | 0.58 |
| Usable Length (Decimal) | 0.15 |
| Usable Length (Metric) | 3.75 |
| Flute Helix Hand | Left |
| Length Chip Flute (Decimal) | 0.34 |
| length chip flute (Metric) | 8.5 |
